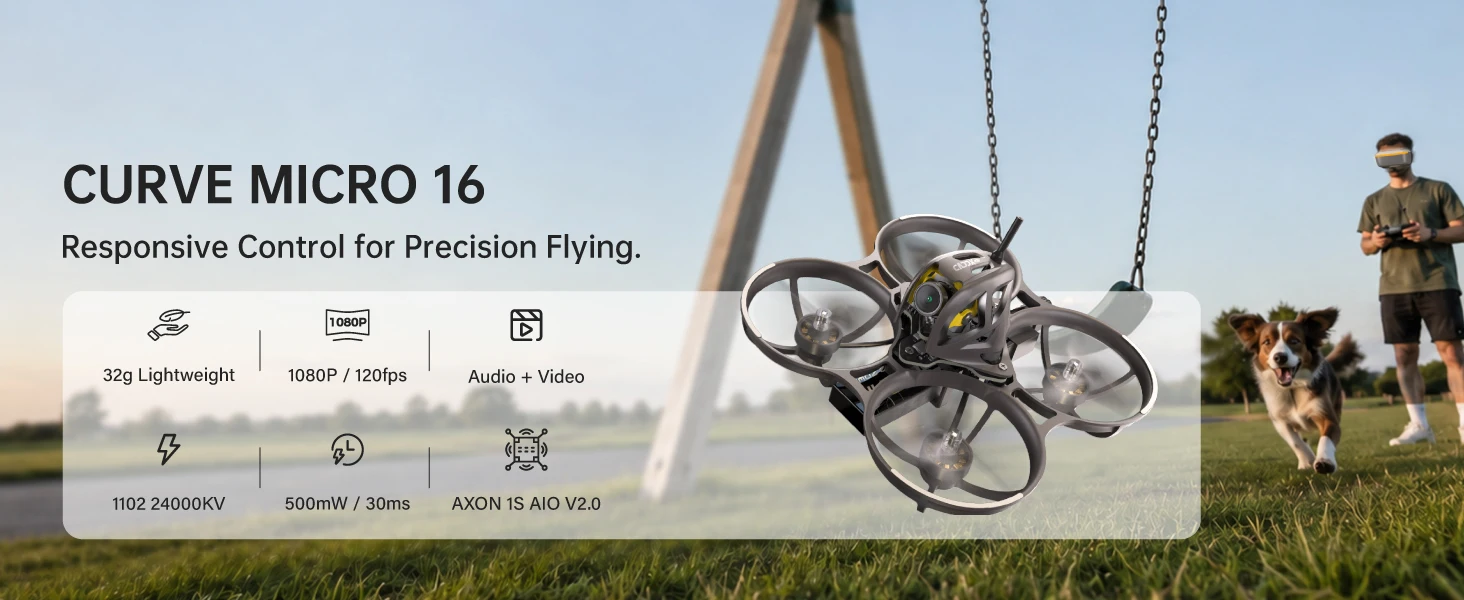

CADDXFPV Curve Micro 16 FPV Whoop Drone 75mm 1S 1102 Motor Walksnail Ascent Lite+ HD 1080P Digital VTX ELRS 2.4G

Description

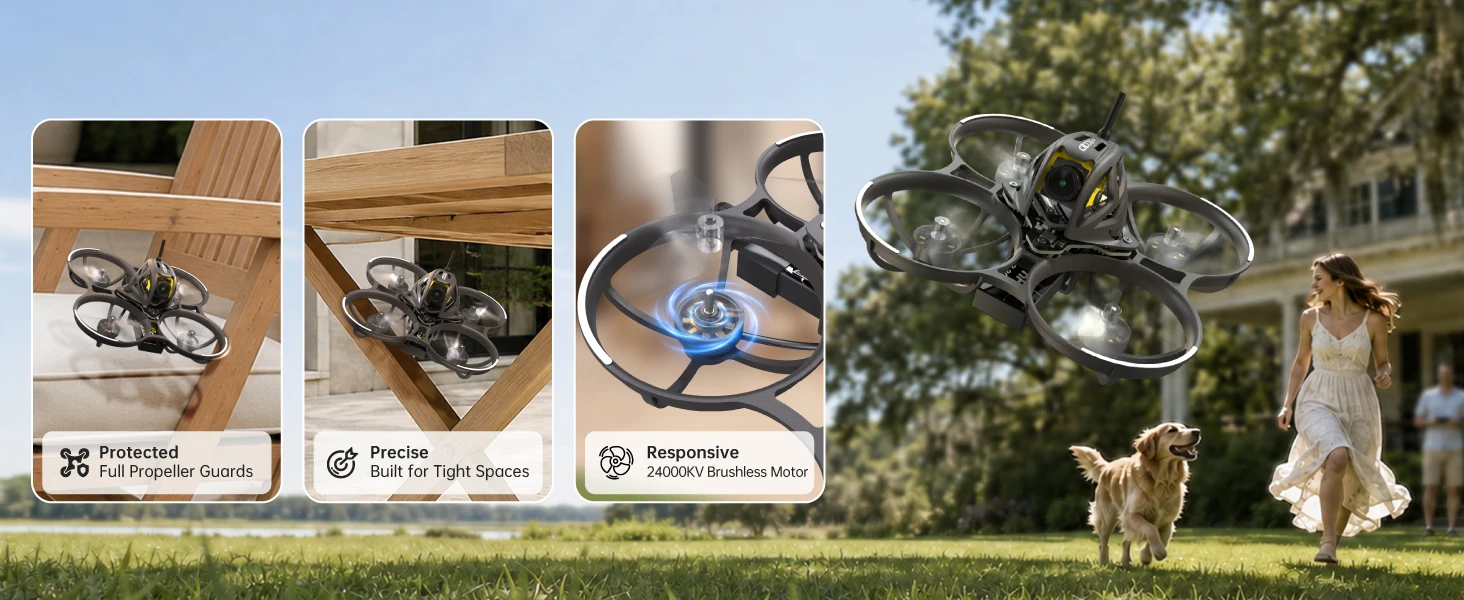

1. Durable Ultra-Light Airframe

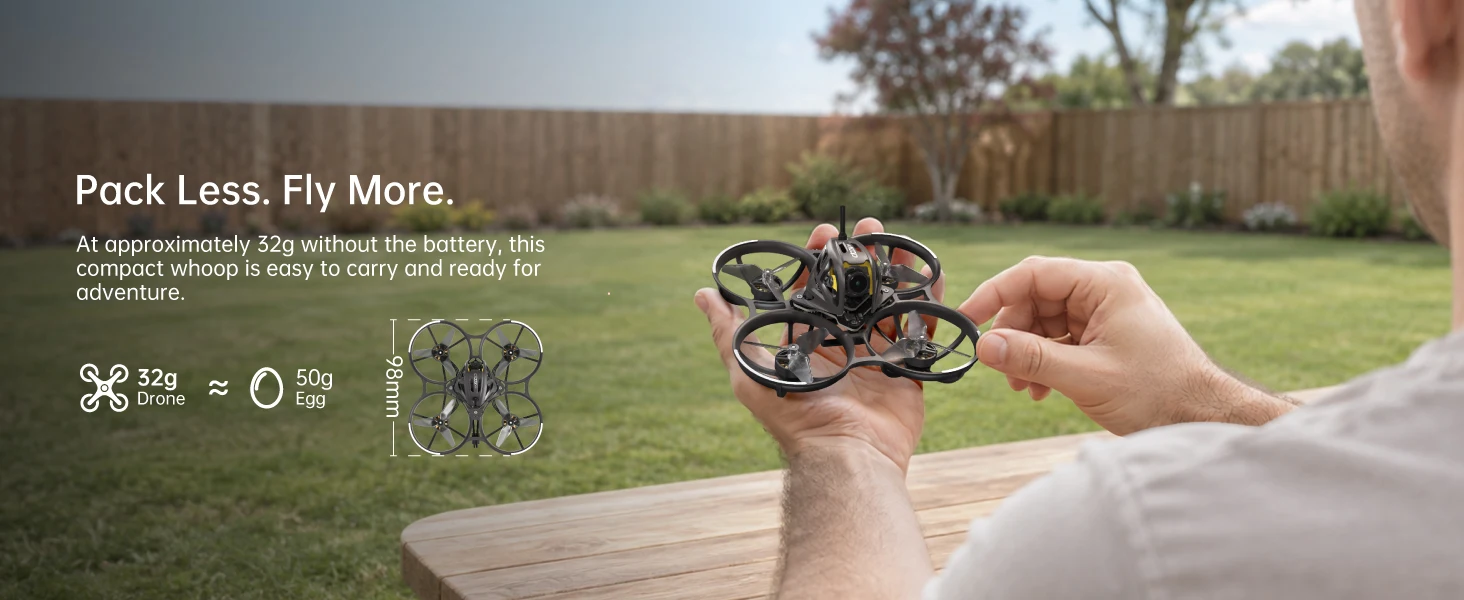

48g takeoff weight (32g dry weight)

Integrated high-strength injection-molded construction

Impact-resistant with smooth flight characteristics

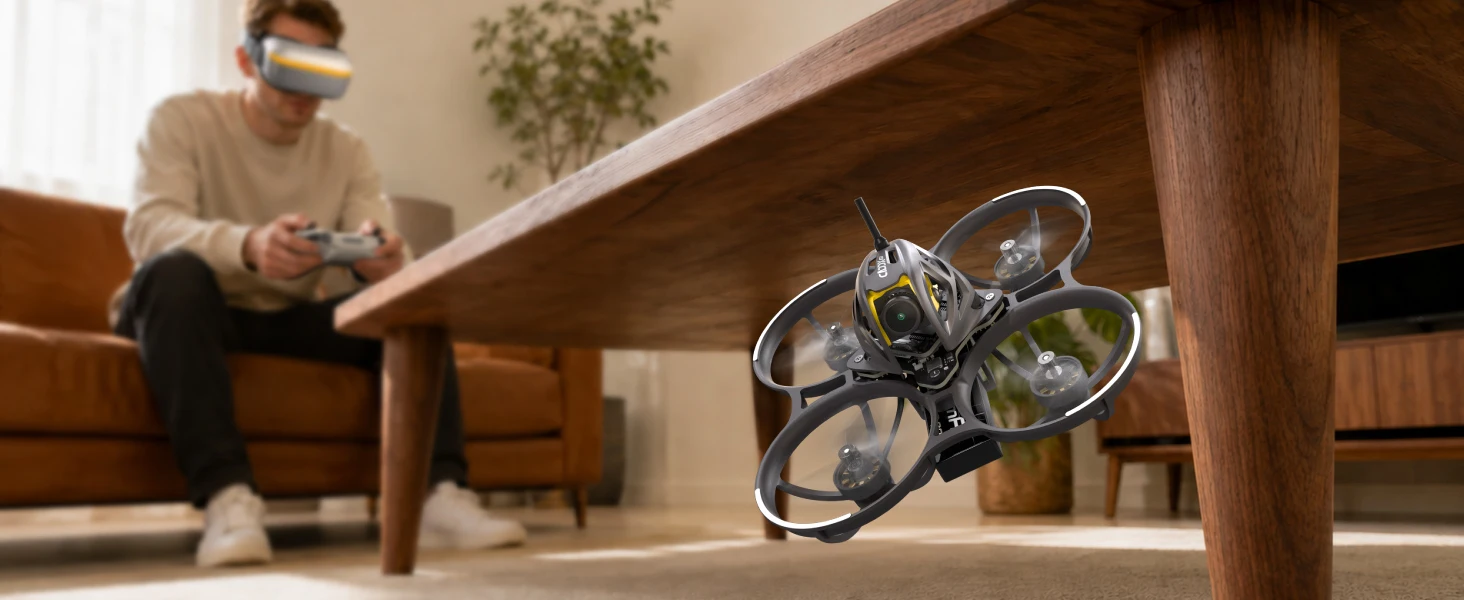

Capable of aggressive indoor and outdoor flying

2. HD Digital Video Transmission (Core Differentiation)

Built-in Walksnail Ascent Lite+ HD digital VTX

500mW transmit power (FCC/SRRC <27dBm, CE <14dBm), 5.730–5.815GHz

Ultra-low 30ms latency, tested up to 8km range on fixed-wing platforms

Bandwidth support: 5M/10M/20M/Auto

3. High-Frame-Rate Imaging + Synchronized Audio

1/2.8" sensor, 147° ultra-wide angle, 16:9 aspect ratio

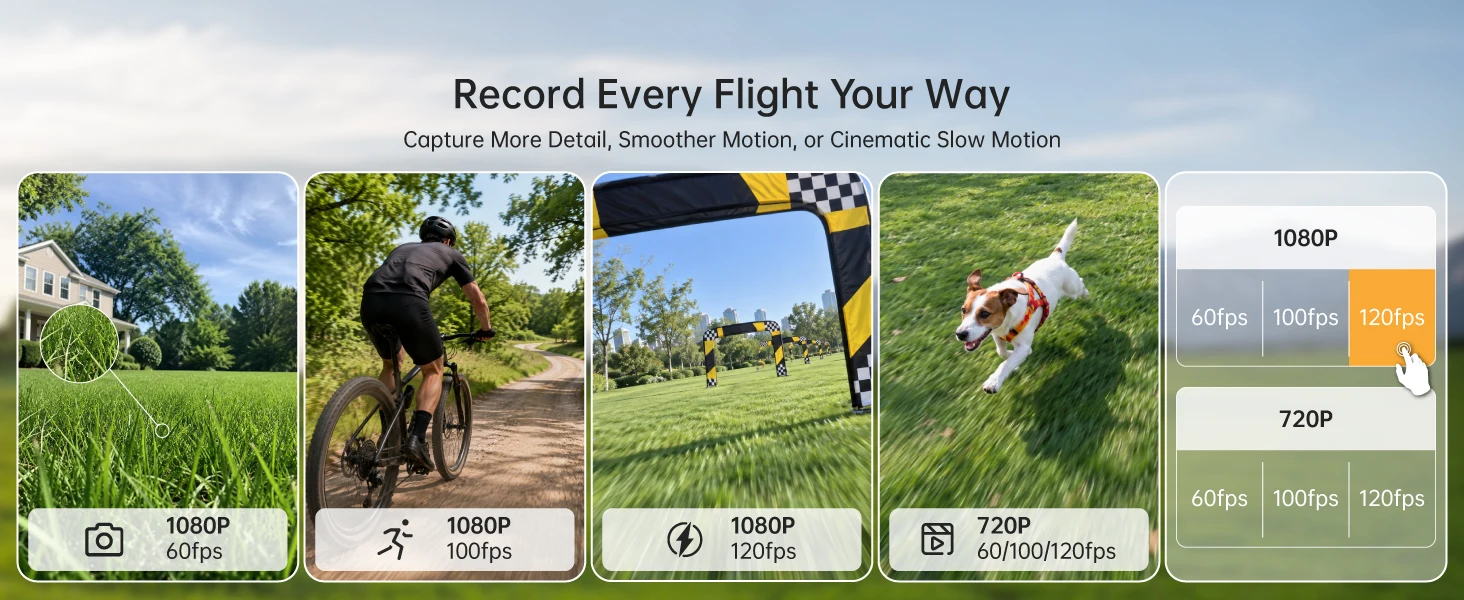

Supports 1080P@60/100/120fps, 720P@60/100/120fps

Synced Audio high-fidelity audio transmission (enabled in 60fps mode)

Delivers crisp, clear visuals for both tight-space proximity flying and large-scale freestyle maneuvers

4. Powerful Propulsion

1102 22000KV high-speed brushless motors + HQ 40mm tri-blade propellers

5. Integrated Flight Controller & Stabilization

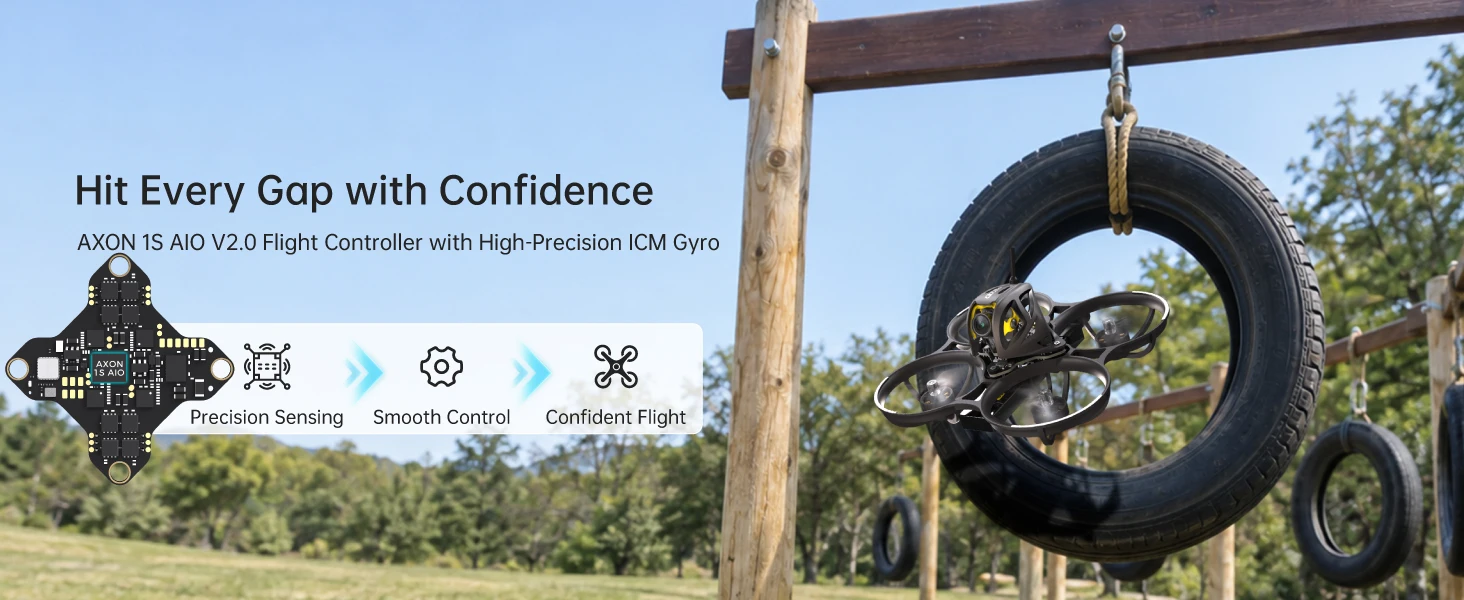

AXON 1S AIO V2.0 integrated FC: STM32G473 MCU + ICM42688/BMI270 gyro + 16M black box

1S 12A ESC (continuous 12A / peak 18A), 5V/3A BEC

Built-in ELRS 2.4GHz V3.6.3 receiver

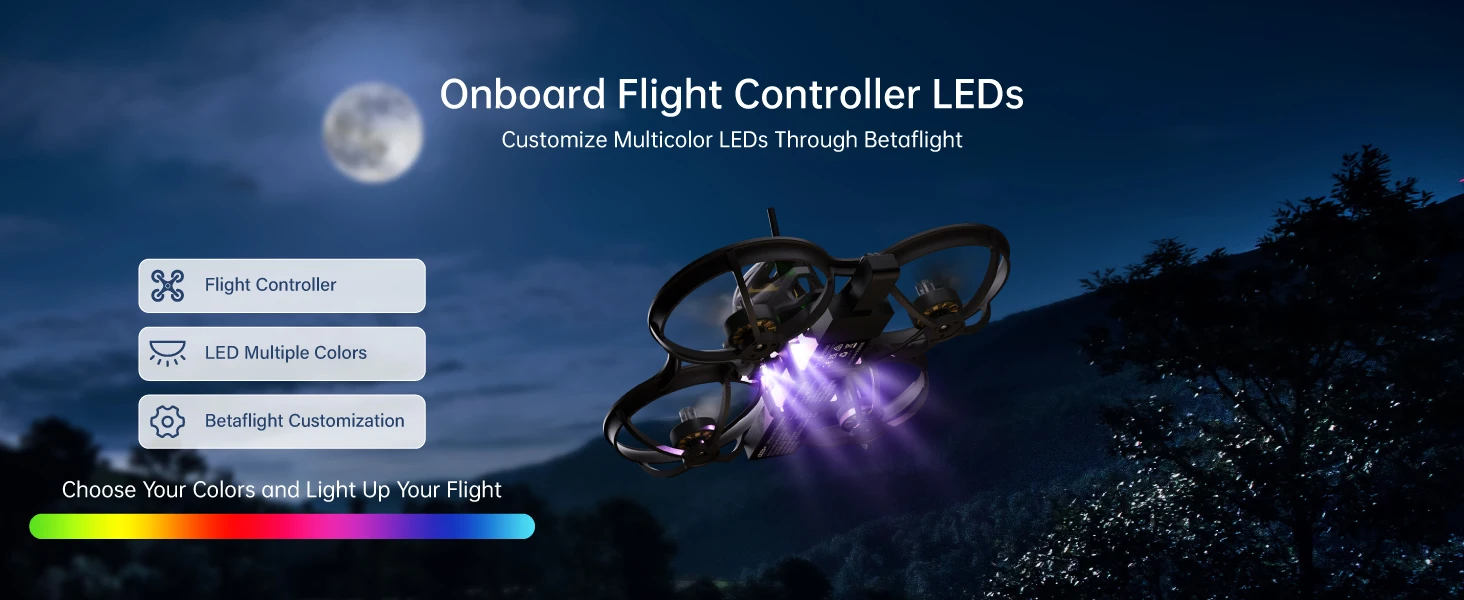

Supports programmable multi-color RGB LED lighting effects

6. Long Flight Time + Convenient Charging

Standard A30 connector, compatible with 1S 580mAh / 680mAh LiHV (4.35V) batteries

6 min 37 sec (±5s) flight time, stable flight 5–7 minutes

Built-in 6-channel Type-C fast charging (USB PD/BC1.2, 5V–12V, 30W/1A), supports power banks, DC power, and car chargers

7. Modular Expansion + Complete Ecosystem

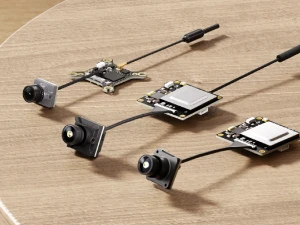

Native support for Walksnail Ascent Lite, Avatar 1S, and third-party VTX modules – easily swappable

Type-C interface + CADDX PC Tool for parameter tuning and firmware upgrades

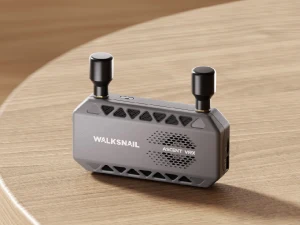

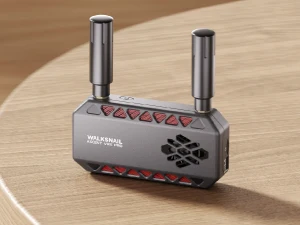

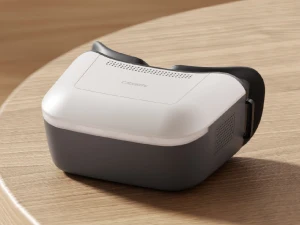

Plug-and-play compatibility with Walksnail Ascent FPV goggles and Ascent VRX / VRX Pro receivers
